LOCATION : JUJUBE machining

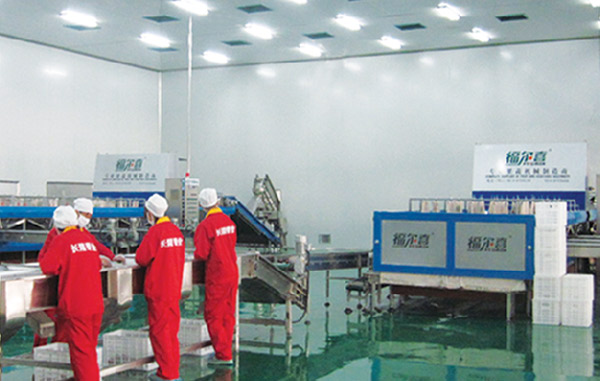

Flourish Jujube Drying Automatic Production Line is a dried jujube production line with a small number of workers, low processing cost, convenient operation and extremely high level of automation in the Chinese jujube drying and processing industry.
JUJUBE cases
| Raw material receiving | Drying and cooling |
| Preliminary classification | |
| Storage and sterilization | |
| Clean | |
| Spray inclined lifting cleaning | Selection classification / inspection |
| Packing | |
| Raw material receiving | Concentration and Evaporation |
| Fruit pool (provided by customers) | |
| Duplex filter | |
| Raw material pretreatment | Filling |
| Roller conveyor pre-cleaning | Glass bottles |
| Cans | |
| Roof pack | |
| Rotary spiral pre-cooking | |
| Separate | |
| Buffer tank | |
| Raw material receiving | Juicing |
| Fruit pool (provided by customers) | |
| Curved surface juice sieve | |
| Raw material pretreatment | Circulating water tank |
| Turn over the basket | |
| Feeding | Juice collection tank |
| Screw conveyor | |
| Sorting | Fruit wine fermentation |
| Z type loading | Juice adjustment tank |
| Storage silo | Fruit wine fermentation tank |
| Belt scale conveying | Accessories adding tank |
| Scraper lift | Distillation |
| Initial washing of roller bars + picking and conveying | Fruit wine aging tank |
| Three-axis dial surf cleaning | YPGL40 diatomaceous earth filter |
| Hammer crushing | Sake can (freezer can) |
| Pulp buffer tank | Cocktail jar |
| Rehydration tank | 200 plate and frame cardboard filter |
| Hot water supply | |
| Jujube core transport | Hot water tank |
| Enzymatic hydrolysis tank | Constant pressure water supply |
| Second squeeze extraction tank | Filling |
| Glass bottles | |
| Raw material receiving | Juicing |
| Fruit pool (provided by customers) | |
| Curved surface juice sieve | |
| Raw material pretreatment | Circulating water tank |
| Turn over the basket | |
| Feeding | Juice collection tank |
| Screw conveyor | |
| Sorting | Fruit vinegar fermentation |
| Z type loading | Juice adjustment tank |
| Storage silo | Self-priming acetic acid fermentation tank |
| Belt scale conveying | Raw vinegar storage tank |
| Scraper lift | Membrane filtration |
| Initial washing of roller bars + picking and conveying | Vinegar storage tank |
| Three-axis dial surf cleaning | Sugar pot |
| Hammer crushing | Sugar Filter |
| Pulp buffer tank | Emulsification tank |
| Rehydration tank | Fruit vinegar blending tank |
| Vacuum degassing | |
| Jujube core transport | Fruit vinegar buffer tank |
| Enzymatic hydrolysis tank | UHT sterilization |
| Second squeeze extraction tank | Hot water supply |
| Hot water tank | |
| Constant pressure water supply | |
| Filling | |
| Glass bottles | |
| Raw material acceptance and temporary storage | Pre-cooked |
| Raw material warehouse | Jujube pre-cooked |
| Jujube cooling | |
| Pretreatment equipment | Vibration to remove water |
| Processing after baking | |
| Roller picking | Feed |
| Orbital classification | Material distribution |
| Roller conveyor pre-cleaning | Roller picking and sterilization |
| Jujube powder and instant packet |
| Jujube milling and drying |
| Superfine pulverization |
| Mixing |

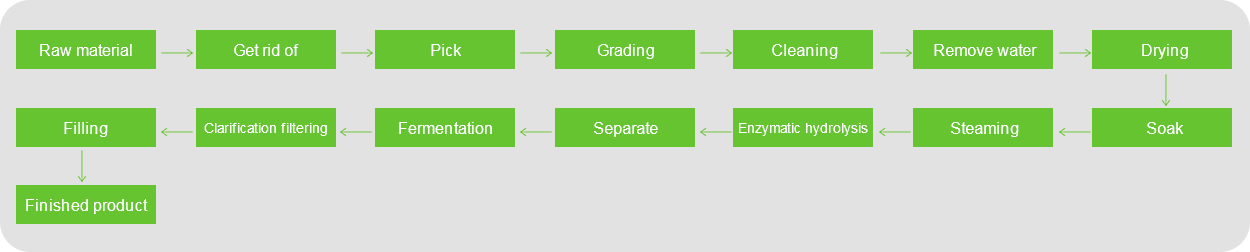

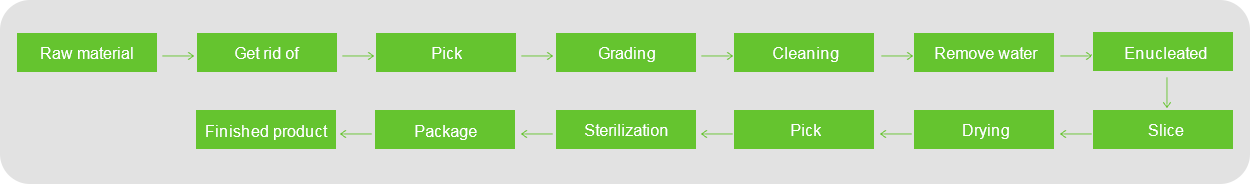

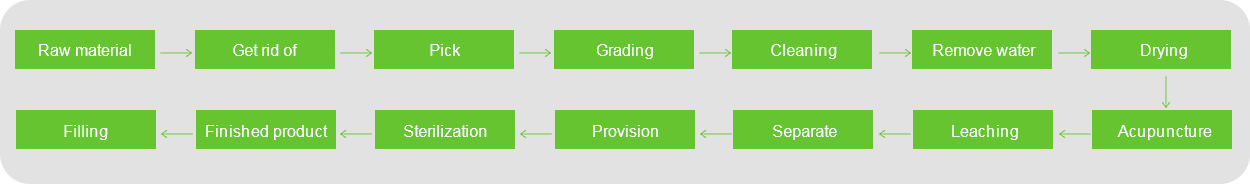

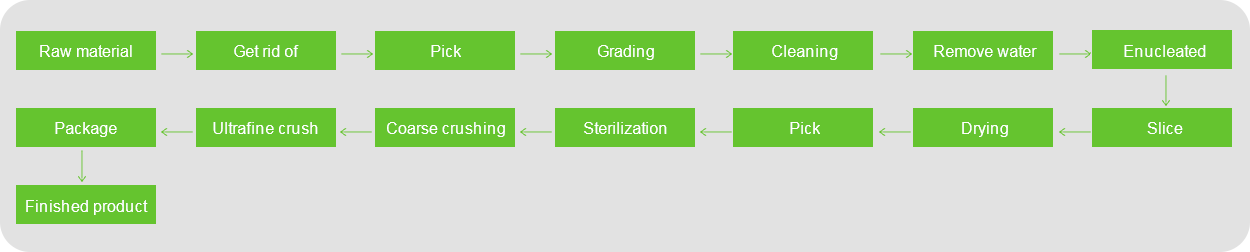

JUJUBE Processing flow
